Do you know about the hydraulic thumb clamps that are equipped on small excavators

Hydraulic thumb clamp for small excavators: functions, advantages and limitations

1. Definition and basic principles

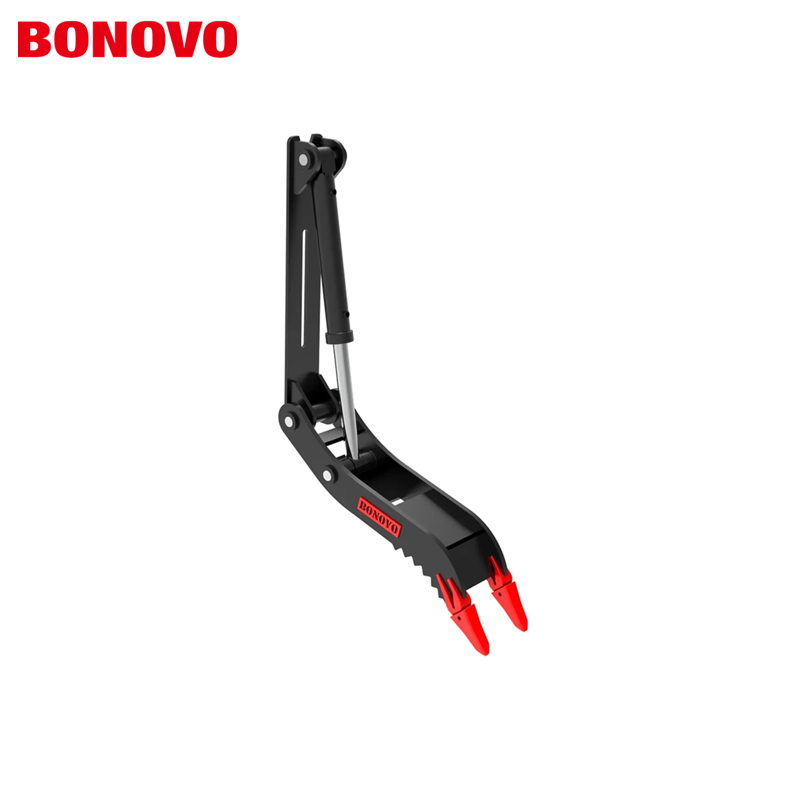

The hydraulic thumb clamp of a small excavator is a sophisticated and practical auxiliary equipment, usually installed on the forearm or bucket at the front end of the excavator. Its appearance resembles a flexible "thumb" and is mainly driven by a hydraulic system to achieve precise opening and closing movements.

When the excavator's joystick is operated, the hydraulic system will deliver hydraulic oil to the hydraulic cylinder of the thumb clamp. The pressure generated by the hydraulic oil pushes the piston, which in turn drives the opening and closing of the clamp arm. For example, during the grasping operation, the hydraulic oil is controlled by the joystick to flow into a specific hydraulic cylinder chamber, so that the clamp arm closes quickly and firmly grasps the target object.

Key points:

1. Installation location: the forearm or bucket at the front end of the excavator.

2. Drive mode: hydraulic system.

3. Working principle: hydraulic oil pushes the piston to control the opening and closing of the clamp arm.

2. Structural composition

1. Clamp arm part: As a part that directly contacts the grasped object, the clamp arm is generally made of high-strength steel. Its unique shape design can fit the surface of the object tightly, greatly improving the stability of the grasping. Some clamp arms are also equipped with tooth structures on the inside, which can effectively prevent slipping when grasping objects with smooth surfaces such as logs and steel pipes.
2. Hydraulic cylinder part: The hydraulic cylinder is the power source of the hydraulic thumb clamp, which is composed of key components such as cylinder barrel, piston, and piston rod. The cylinder barrel is filled with hydraulic oil, and the piston drives the piston rod to reciprocate under the pressure of the hydraulic oil. Good sealing performance is the key to ensure the normal operation of the hydraulic cylinder, which can effectively prevent hydraulic oil leakage. The specifications of the hydraulic cylinder vary according to the design purpose and load-bearing capacity of the thumb clamp.
3. Connection part: The connection part is responsible for firmly installing the hydraulic thumb clamp on the excavator, which must ensure the firmness of the connection and take into account the convenience of installation and disassembly. The common connection method is through bolts and special connection brackets, and a buffer device is equipped at the connection part to reduce the impact on the excavator's small arm and other parts during work.

Key points:
1. Clamp arm: high-strength steel, toothed structure anti-slip
2. Hydraulic cylinder: power core, key to sealing performance.
3. Connection part: bolts connected to the bracket, with buffer device.

III. Function and use
1. Function
- Grabbing function: It has strong grasping ability and can grab objects of various shapes and sizes such as construction waste (such as bricks, concrete blocks), garden waste (branches, stumps), agricultural materials (fodder, agricultural products), etc.

- Auxiliary handling: In the process of loading and unloading goods, it acts as an auxiliary tool to accurately place the goods in the designated position, improving the accuracy and efficiency of handling.

2. Use
- Construction industry: It is widely used in the cleaning of debris on the construction site and the handling of small building materials. For example, it can be used to carry tiles and small stones during interior decoration, and to clean up construction waste after demolishing walls.
- Gardening industry: It plays an important role in the construction and maintenance of garden landscapes, and can be used for transplanting trees, carrying landscape stones, etc. For example, when planting large landscape trees, it can easily move saplings with soil balls into the planting pit.

- Agricultural field: Assists in material handling work on farms, such as stacking forage and carrying agricultural products. In the harvest season, bundles of crops can be quickly moved to transport vehicles.

Key points:

1. Function: Grab a variety of objects and assist in precise handling.

2. Application: Construction, landscaping, agricultural production.

IV. Advantages and limitations

1. Advantages

- Improve work efficiency: Compared with manual handling or using simple tools, hydraulic thumb clamps can quickly grab and move objects, significantly shortening working time. For example, in the cleaning of construction waste, the cleaning speed can be greatly improved.

- Enhance operational flexibility: Grasping operations can be performed at different angles and positions to adapt to complex working environments. In conjunction with a small excavator, it can complete material handling and cleaning tasks in a narrow space.

- Versatility: By replacing different types of thumb clamps or adjusting working parameters, it can adapt to a variety of work tasks and meet different grabbing needs.

2. Limitations

- Limited carrying capacity: Limited by the power and structure of small excavators, the hydraulic thumb clamp has a relatively small carrying capacity and is suitable for grabbing lighter objects. Grabbing too heavy objects may damage the relevant parts of the excavator.

- High cost: It costs a certain amount to purchase and install the hydraulic thumb clamp, and the subsequent maintenance and repair costs cannot be ignored, such as regular replacement of hydraulic oil and repair of hydraulic cylinders.

Key points:

1. Advantages: efficient, flexible and multifunctional.

2. Limitations: limited carrying capacity and high cost.

The hydraulic thumb clamp of small excavators, with its unique design and practical functions, has shown important value in many fields such as construction, gardening, and agriculture. Although there are certain limitations, it can effectively improve work efficiency and bring convenience to construction and production in appropriate working scenarios. With the continuous development of technology, it is believed that the performance of the hydraulic thumb clamp will continue to be optimized and the scope of application will be further expanded.
