The exquisite and special design of hydraulic wood grabber for small excavator

In the ever-changing development of construction engineering and forestry operations, small excavators have become an indispensable and important construction equipment with their unique advantages. As one of the key accessories of small excavators, hydraulic wood grabbers have a wide range of applications. Whether it is efficient transportation in wood handling, rapid cleaning during obstacle removal operations, or delicate operations during gardening and beautification, small excavators can be equipped with hydraulic wood grabbers to perform well. In order to further improve operating efficiency and safety, hydraulic wood grabbers need to consider many special requirements when designing.

What are the special design requirements for hydraulic wood grabbers suitable for small excavators?

Structural design: a sturdy structure tailored for small excavators

For hydraulic wood grabbers suitable for small excavators, their structural design must closely fit the working environment and operating requirements of small excavators. In terms of material selection, high strength and wear resistance are key considerations. Since small excavators often need to carry wood under complex working conditions, the wood grabber will be subjected to great pressure and friction. Therefore, the use of high-strength steel to build the wood grabber can significantly enhance its durability, effectively extend its service life, and ensure stability when working with small excavators.

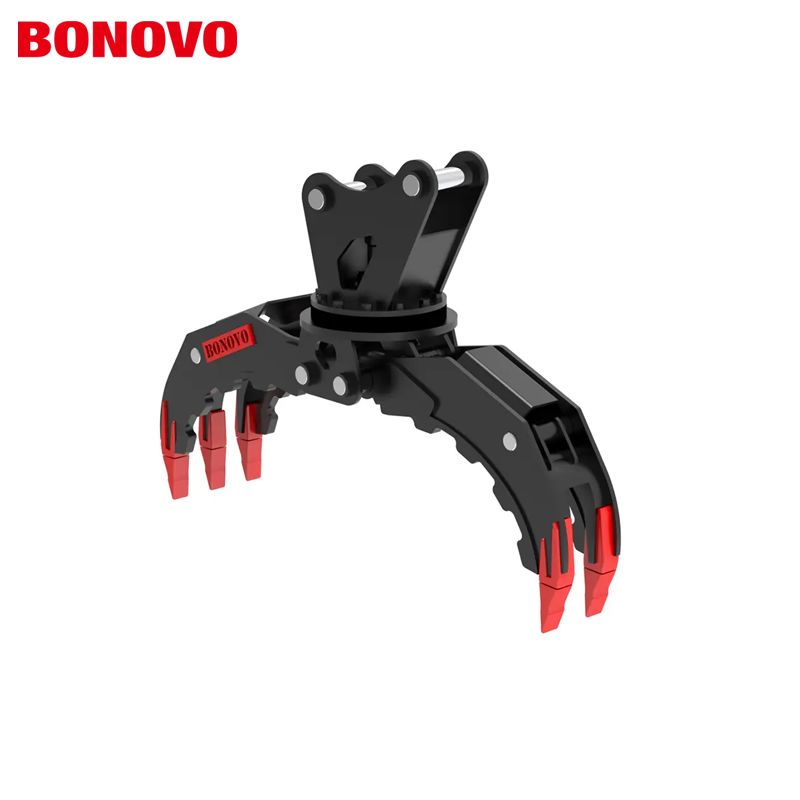

The structural design of the gripper is also crucial, and good gripping ability is its core indicator. Generally speaking, hydraulic wood grabbers suitable for small excavators mostly adopt a multi-finger gripper design, which can flexibly adapt to wood of different shapes and sizes. Small excavators may face various forms of wood in forestry operations. Multi-finger grippers can grasp them accurately, which not only greatly improves the grasping efficiency, but also minimizes the damage to the wood and gives full play to the operating advantages of small excavators.

Hydraulic system: the power core that gives small excavators stronger operating capabilities

The hydraulic system is the core of the hydraulic wood grabber. Its performance directly determines the gripping ability and operating flexibility of the wood grabber when working with a small excavator. In the selection of hydraulic cylinders, it is necessary to configure the size and pressure level scientifically and reasonably according to the power size and actual operating load of the small excavator. If the hydraulic cylinder is too small, the gripping capacity will be insufficient, affecting the working efficiency of the small excavator; if the hydraulic cylinder is too large, it will increase the system burden of the small excavator and reduce the overall operating efficiency.

Reasonable planning of the hydraulic pipeline layout is also crucial for the coordinated work of the small excavator and the hydraulic wood grabber. It not only ensures the smooth flow of oil in the system, but also effectively reduces the risk of oil leakage and pressure loss. The use of high-quality pipeline materials that are resistant to high pressure and oil corrosion can significantly improve the overall performance of the wood grabber and ensure that the small excavator can operate stably under various working conditions.

The design of the control valve is a key link in achieving precise operation. Hydraulic wood grabbers usually use proportional valves or servo valves for control. When used with small excavators, they can greatly improve the accuracy and flexibility of operation. Through fine control, the wood grabber can achieve more complex movements, efficiently transport and stack various wood, and give full play to the versatility of small excavators.

Operation comfort: an important consideration for improving the operator experience of small excavators

The operating comfort of the hydraulic wood grabber has an important impact on the efficiency of working with small excavators. The design of the operating lever must strictly follow the principles of ergonomics to ensure that the operator can operate the small excavator and the wood grabber comfortably and conveniently. The shape and position of the handle should fully consider the usage habits of operators of different body sizes, so that they can flexibly perform various operations and reduce the fatigue caused by long-term operation.

In the process of grabbing wood with a small excavator, the wood grabber may generate certain vibrations and noises, which will not only affect the operator's work experience, but also may interfere with the surrounding environment. Therefore, in the design of the wood grabber, it is necessary to fully consider the shock absorption and noise reduction measures, and improve the comfort of the working environment by optimizing the structure and using shock-absorbing materials, so that the operator can use the small excavator more attentively for operation.

Safety design: a solid line of defense to protect the safety of small excavator operations

The safety of the hydraulic wood grabber is directly related to the personal safety of the operator operating the small excavator and the integrity of the equipment. Anti-pinch design is an important measure to ensure personnel safety. When the gripper of the wood grabber is closed, it may cause a risk of pinching to the surrounding personnel. Therefore, anti-pinch features should be added to the design, such as using buffer devices or separators, to provide safety protection for personnel operating small excavators.

Overload protection mechanism is also an indispensable design point. When designing a hydraulic wood grabber suitable for small excavators, it is necessary to set up equipment such as pressure sensors or limit switches to monitor the grab weight in real time. Once the grab weight exceeds the set value, the system can respond in time to prevent the equipment from being damaged due to overload, ensuring the normal operation of the small excavator and wood grabber.

In addition, the design of the emergency stop device is crucial for dealing with emergencies when operating a small excavator. When an accident occurs, the operator can quickly press the emergency stop button to interrupt the operation of the wood grabber, avoid further expansion of the accident, and ensure the safety of the operation.

Adaptability and flexibility: a powerful assistant for small excavators to cope with changing working conditions
The adaptability and flexibility of the hydraulic wood grabber are important design considerations when it is adapted to small excavators. Small excavators often need to perform tasks in different working environments, from mountain operations in forestry to urban construction sites in construction projects, and the working conditions are complex and changeable. Therefore, the wood grabber should have high adaptability.

The hydraulic wood grabber with modular design concept can be quickly replaced and adjusted according to different working requirements. When the small excavator faces different work tasks, the operator can quickly select the appropriate wood grabber module according to the specific situation to achieve higher work efficiency and give full play to the multi-functional advantages of the small excavator.

At the same time, the multi-functionality of the wood grabber is fully considered during the design, so that it can not only perform conventional grabbing operations, but also realize various complex actions such as flipping and stacking. In this way, the hydraulic wood grabber can better adapt to more working scenarios, work closely with the small excavator, and play a greater role in modern construction.

The design requirements of the hydraulic wood grabber of the small excavator cover multiple dimensions such as structure, performance, safety, operating comfort and adaptability. Only by comprehensively considering these special design requirements can we create an efficient, reliable hydraulic wood grabber that is perfectly adapted to the small excavator to meet the diverse practical needs in modern construction. With the continuous innovation and optimization of technology, small excavator hydraulic wood grabbers will surely shine more brightly in future engineering operations and provide stronger support for the development of fields such as construction engineering and forestry operations.
