Side Type Hydraulic Hammer

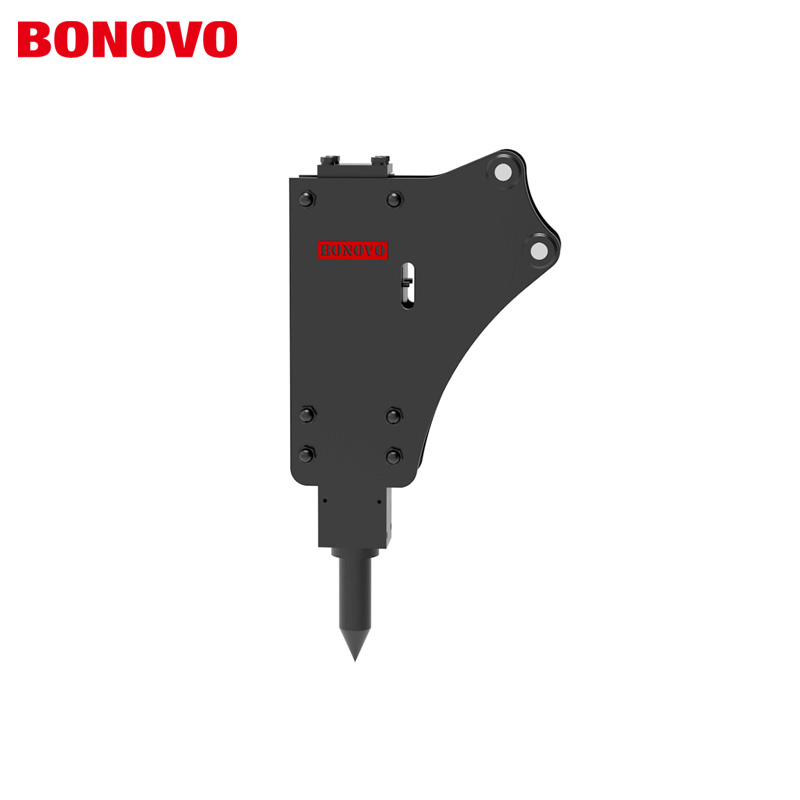

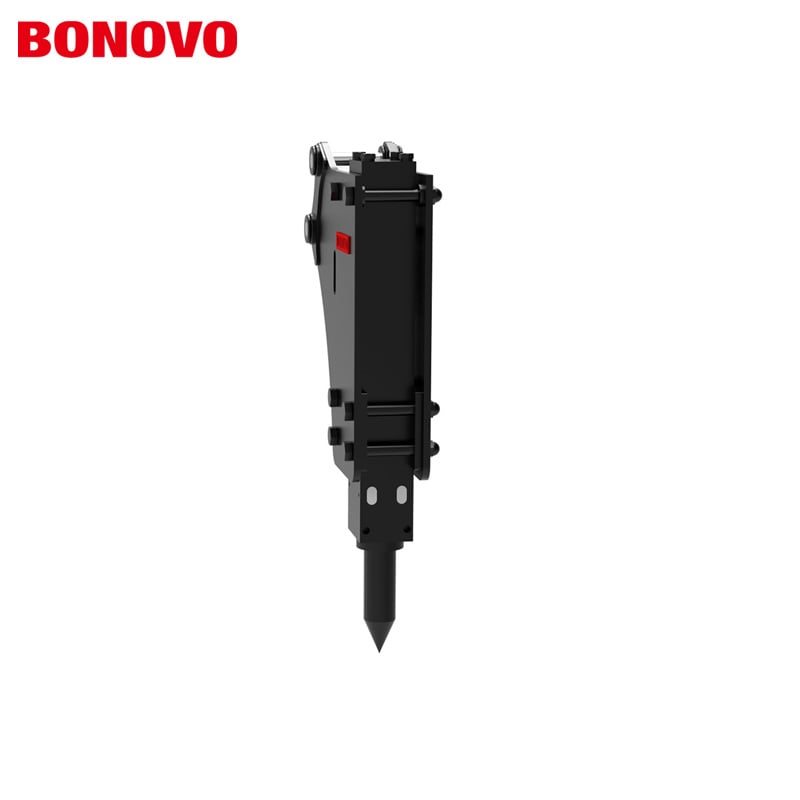

BONOVO Side Type Hydraulic Hammer For Excavator 6-25 ton

  • Description
Is there a problem? <br/>Please contact us to serve you!

Is there a problem?
Please contact us to serve you!

Inquiry

Overview of the BONOVO Side Type Excavator Hydraulic Hammer

Introducing BONOVO's side type excavator hydraulic hammer, also known as the side type hydraulic breaker or ram hoe. This powerful attachment is driven by hydrostatic pressure, propelling the piston to reciprocate at high speed, delivering powerful impacts to the drill rod. The rod, in turn, effectively breaks down tough materials such as ore and concrete. Designed to fit excavators and wheel loaders ranging from 1 to 55 tons, BONOVO's side type excavator hydraulic hammer is an indispensable tool for various demanding applications.

Specification

BONOVO Side Type Excavator Hydraulic Hammers

Model Unit HB750 HB850 HB1000 HB1350
For Excavator Ton 6-9 7-14 10-15 15-25
Operating Weight Kg 430 550 820 1380
Working Flow B/min 50-90 45-85 80-120 90-120
Working Pressure Bar 120-170 127-147 150-170 150-170
Impact Rate Bpm 400-800 400-800 400-700 400-650
Impact Energy Joule 720 1200 2000 2950
Tool Diameter mm 75 85 100 135
Package Size mm 1540*490*700 1620*500*600 1890*600*900 2200*680*900

Optimal Working Conditions

- Demolition: Efficiently dismantle structures and clear sites.

- Construction: Aid in building foundations, roads, and other infrastructures.

- Quarry: Break down large rocks and minerals.

- Production Breaking Needs: Enhance productivity in mining and materials processing.

Versatile Applications

Side type excavator hydraulic hammers from BONOVO are widely utilized across numerous sectors, including gravel pits, mines, roadworks, civil engineering projects, demolition tasks, metallurgy, and tunnel construction. Depending on specific needs, they can be configured into different types such as triangular breakers, vertical breakers, silent breakers, and slip breakers specifically designed for skid loaders.

Superior Design and Functionality

The BONOVO Side Type Excavator Hydraulic Hammers excel in situations where the crushing object is narrow. The cone-shaped hammer head exerts a cutting effect, enabling the material to fracture along the cone's surface, thus achieving efficient crushing. Typically mounted on excavators or backhoe loaders, the triangular hydraulic hammer variant is particularly popular.

Variety of Chisels

To cater to various operational requirements, BONOVO offers a range of chisels:

- Moil Point

- Blunt Tool

- Flat Chisel

- Conical Point

Premium Materials for Enhanced Durability

- Cylinders: Manufactured from 20CrMo steel, an alloy structural steel known for its excellent cold extrusion, cold stamping performance, and weldability. The Mo element ensures good thermal stability, vital for maintaining material stability and mechanical properties under high working temperatures.

- Chisels: Made from 42Cr material, offering high compressive strength, superior cutting performance, flexibility, minimal deformation during heat treatment, and excellent creep strength at continuous high temperatures, guaranteeing a longer service life.

Thoughtful Packaging

BONOVO ensures that each excavator hydraulic hammer is securely packaged in export wooden boxes, which mitigate sea moisture damage during shipping. Additionally, the inclusion of common tools facilitates routine maintenance for customers.

Choose BONOVO for Unmatched Quality

BONOVO prides itself on delivering high-quality, customizable solutions with rapid delivery times. When you choose BONOVO, you are investing in a ram hoe that guarantees reliability, durability, and exceptional performance. Experience the BONOVO difference today and elevate your operations to new heights with our side type excavator hydraulic hammers.

For more information or to place an order, contact us now. Ensure your projects are equipped with the best - choose BONOVO excavator hydraulic hammers for unparalleled excellence and service.
