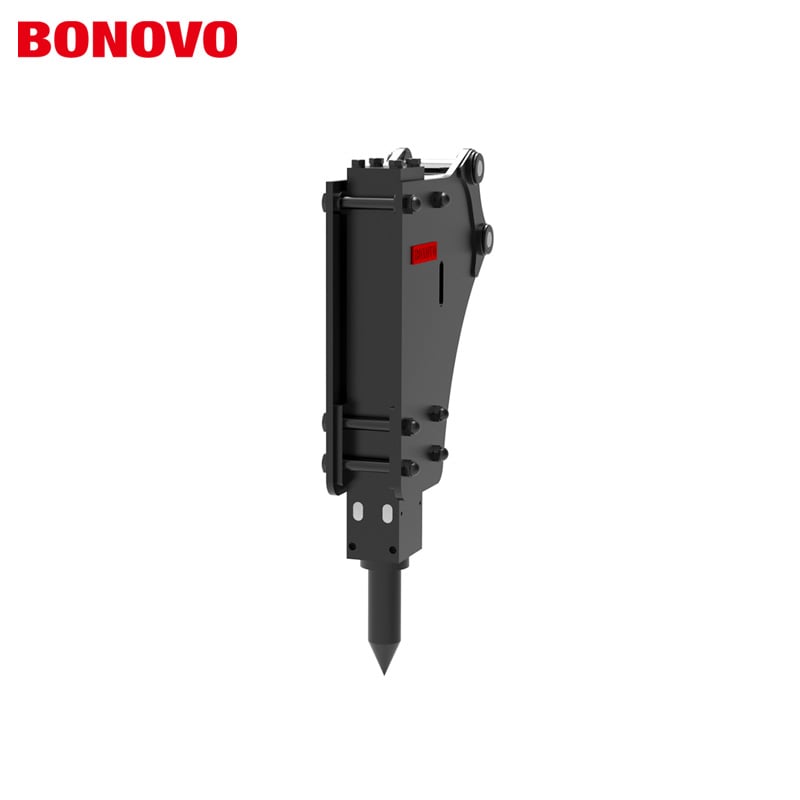

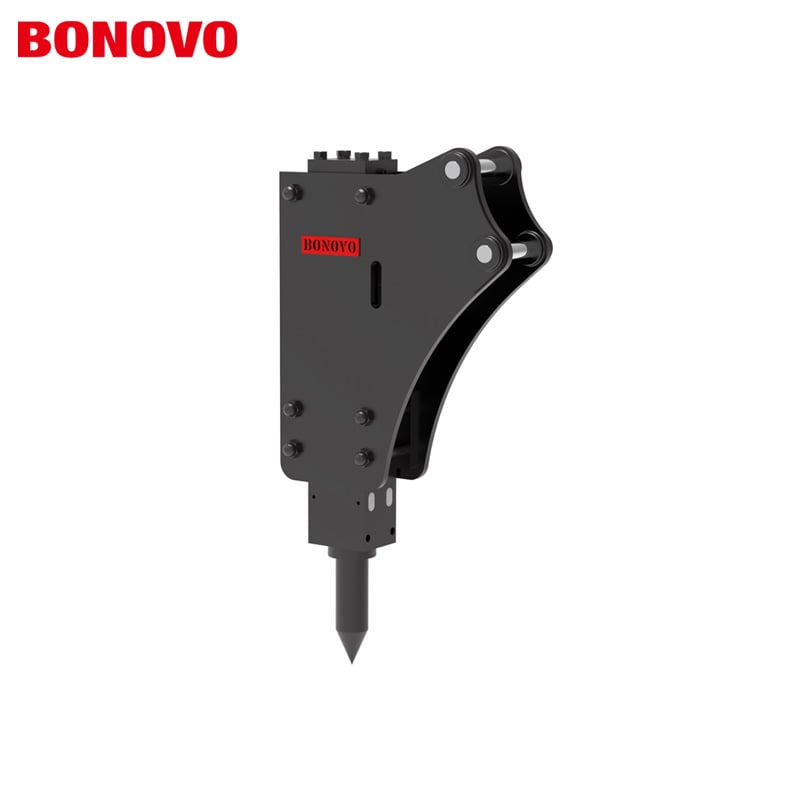

Introducing the BONOVO's side type digger hydraulic breaker, also known as the side type hydraulic breaker or hydraulic hammers. This powerful attachment is driven by hydrostatic pressure, propelling the piston to reciprocate at high speed, delivering powerful impacts to the drill rod. The rod, in turn, effectively breaks down tough materials such as ore and concrete. Designed to fit excavators and wheel loaders ranging from 1 to 55 tons, the BONOVO's side type digger hydraulic breaker is an indispensable tool for various demanding applications.
BONOVO Side Type Hydraulic Hammers For Mini Excavators |
||||
| Model | Unit | HB450 | HB530 | HB680 |
| For Excavator | Ton | 1-1.5 | 2.5-4.5 | 3-7 |
| Operating Weight | Kg | 122 | 150 | 300 |
| Working Flow | B/min | 20-30 | 25-45 | 36-60 |
| Working Pressure | Bar | 90-100 | 90-120 | 110-140 |
| Impact Rate | Bpm | 500-1000 | 500-1000 | 500-900 |
| Impact Energy | Joule | 240 | 320 | 600 |
| Tool Diameter | mm | 45 | 53 | 68 |
| Package Size | mm | 1000*350*600 | 1160*390*610 | 1360*480*600 |
- Demolition: Efficiently dismantle structures and clear sites.
- Construction: Aid in building foundations, roads, and other infrastructures.
- Quarry: Break down large rocks and minerals.
- Production Breaking Needs: Enhance productivity in mining and materials processing.
Hydraulic hammers from BONOVO are widely utilized across numerous sectors, including gravel pits, mines, roadworks, civil engineering projects, demolition tasks, metallurgy, and tunnel construction. Depending on the specific needs, they can be configured into different types such as triangular breakers, vertical breakers, silent breakers, and slip breakers specifically designed for skid loaders.
The BONOVO Side Type Hydraulic Hammers excel in situations where the crushing object is narrow. The cone-shaped hammer head exerts a cutting effect, enabling the material to fracture along the cone's surface, thus achieving efficient crushing. Typically mounted on excavators or backhoe loaders, the triangular hydraulic hammer variant is particularly popular.
To cater to various operational requirements, BONOVO offers a range of chisels:
- Moil Point
- Blunt Tool
- Flat Chisel
- Conical Point
- Cylinders: Manufactured from 20CrMo steel, an alloy structural steel known for its excellent cold extrusion, cold stamping performance, and weldability. The Mo element ensures good thermal stability, vital for maintaining material stability and mechanical properties under high working temperatures.
- Chisels: Made from 42Cr material, offering high compressive strength, superior cutting performance, flexibility, minimal deformation during heat treatment, and excellent creep strength at continuous high temperatures, guaranteeing a longer service life.
BONOVO ensures that each product is securely packaged in export wooden boxes, which mitigate sea moisture damage during shipping. Additionally, the inclusion of common tools facilitates routine maintenance for customers.
BONOVO prides itself on delivering high-quality, customizable solutions with rapid delivery times. When you choose BONOVO, you are investing in a product that guarantees reliability, durability, and exceptional performance. Experience the BONOVO difference today and elevate your operations to new heights with our side type digger hydraulic breakers.
For more information or to place an order, contact us now. Ensure your projects are equipped with the best - choose BONOVO for unparalleled excellence and service.
