Home > Products > Excavator Attachments > Excavator Buckets > General Purpose Buckets

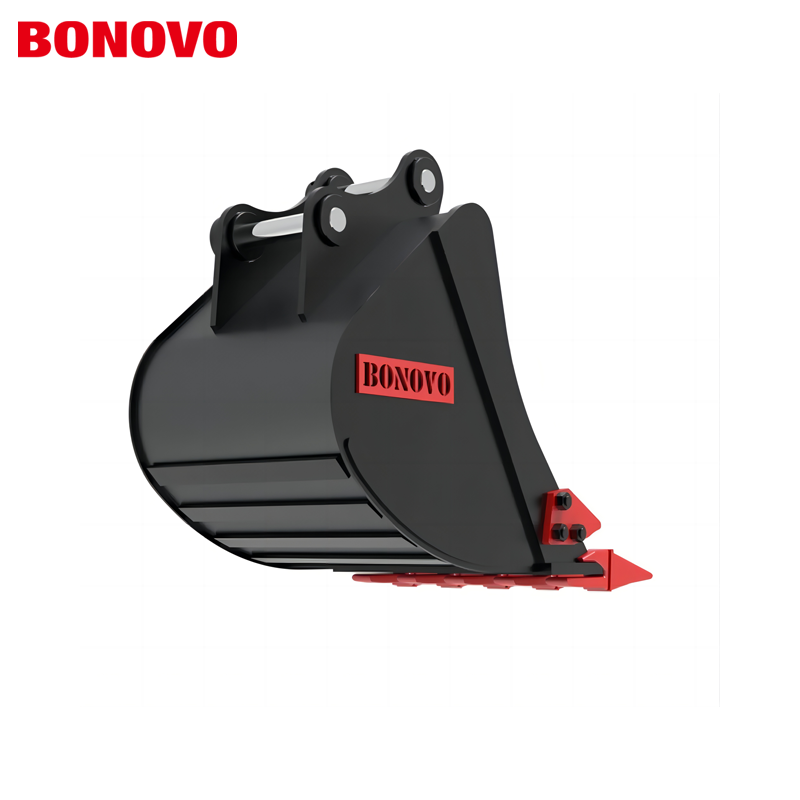

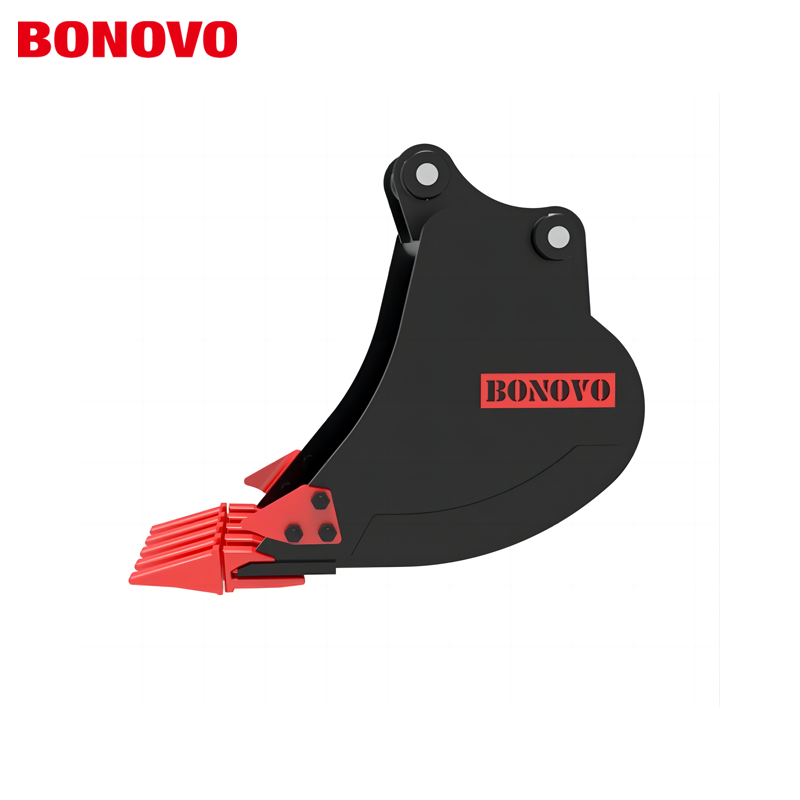

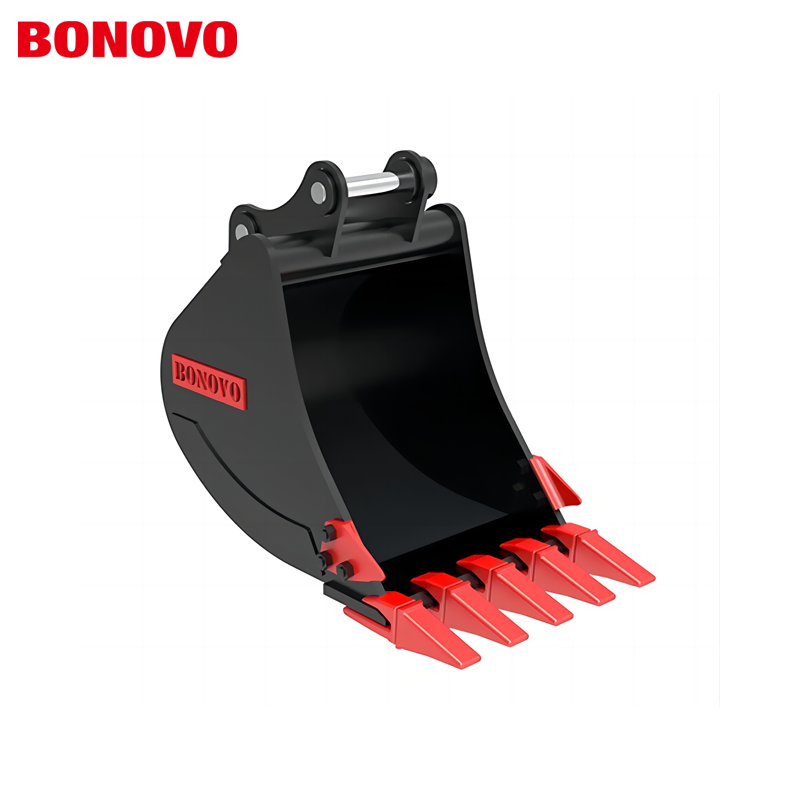

The BONOVO GD08 General Purpose Bucket is designed to meet the demands of mini excavators weighing between 6 to 11 tons, this bucket offers a blend of durability, capacity, and performance. With its robust construction, optimized capacity, and efficient design, this bucket is poised to become a valuable asset for contractors and operators seeking to maximize the productivity of their equipment. Whether tackling small-scale projects or larger construction endeavors, the GD08 bucket delivers the reliability and performance required to get the job done efficiently and effectively.
- Bucket Teeth: Equipped with industry-standard J200 or J250 bucket teeth, providing compatibility with a wide range of replacement tooth systems, ensuring ease of maintenance and availability of spare parts.
- Weight: The weight of the GD08 bucket varies depending on the width and configuration, ranging from 170kg to 335kg. This ensures optimal balance between strength and maneuverability, allowing for efficient operation without sacrificing performance.
BONOVO GD08 General Purpose Bucket for Mini Excavators | |||||||||
| Model | For Excavator Weight | Pin Diameter | Bucket Width | Capacity | Main Cutting Thickness | Bucket Teeth | Quantity | Side Teeth | Weight |
| GD08 | 6-11 ton | 50-60 mm | 12in /305 mm | 0.1 m³ | 20 mm | J200 | 3 | PC60 | 170 kg |
| 18in /457 mm | 0.15 m³ | 25 mm | J250 | 4 | PC60 | 210 kg | |||
| 24in /610 mm | 0.2 m³ | 25 mm | J250 | 5 | PC60 | 240 kg | |||
| 30in /762 mm | 0.25 m³ | 25 mm | J250 | 5 | PC60 | 270 kg | |||
| 36in /915 mm | 0.3 m³ | 25 mm | J250 | 6 | PC60 | 300 kg | |||
| 42in /1067 mm | 0.35 m³ | 25 mm | J250 | 7 | PC60 | 335 kg | |||
The GD08 bucket is compatible with a range of mini excavators weighing between 6 to 11 tons, making it a versatile choice for contractors and operators with various equipment in their fleet.
Constructed from high-quality materials, including a main cutting thickness of 20mm, the GD08 bucket is built to withstand the rigors of demanding job sites. Its durability ensures longevity, reducing downtime and maintenance costs.
Available in various widths ranging from 12 inches to 42 inches, and with capacities from 0.1 to 0.35 cubic meters, the GD08 bucket offers options to suit different project requirements. Whether you're digging trenches, loading materials, or performing general excavation tasks, there's a size to match your needs.
The bucket features strategically placed bucket teeth, with options for three to seven teeth depending on the width, ensuring efficient digging and material retention. Additionally, the inclusion of side teeth enhances stability and control during operation, improving overall performance.
With pin diameters ranging from 50mm to 60mm, the GD08 bucket can be easily attached to compatible mini excavators, minimizing setup time and allowing operators to get to work quickly.
The BONOVO GD08 General Purpose Bucket is ideal for a variety of applications, including:
- Digging trenches and foundations
- Loading and transporting materials such as gravel, sand, and soil
- Excavating and shaping terrain
- Landscaping and site preparation
