BONOVO's Box Type Concrete Breaker, also referred to as the Silenced Type Hydraulic Jackhammer, is a highly efficient attachment designed for excavators, backhoe loaders, and skid steer loaders. Powered by hydrostatic pressure, this advanced tool drives the piston to reciprocate at high speeds, causing the drill rod to deliver powerful impacts. These impacts effectively break through solid materials such as ore and concrete.

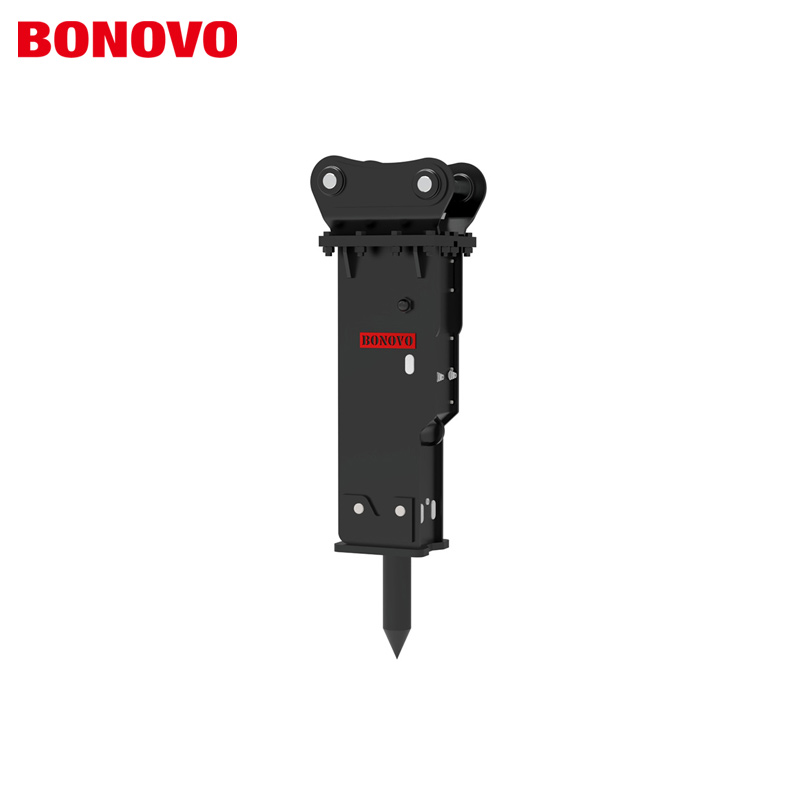

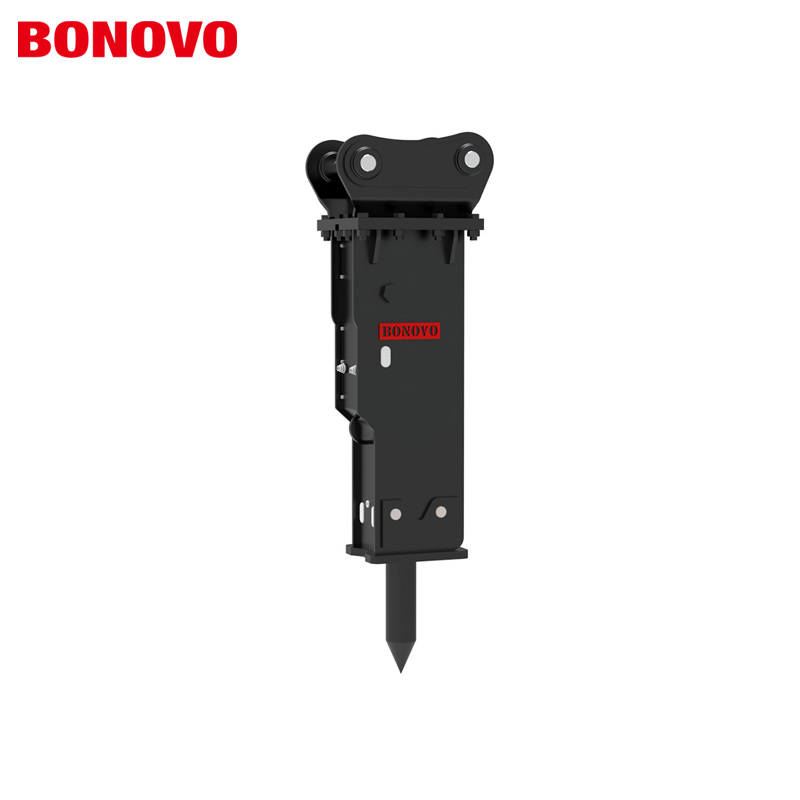

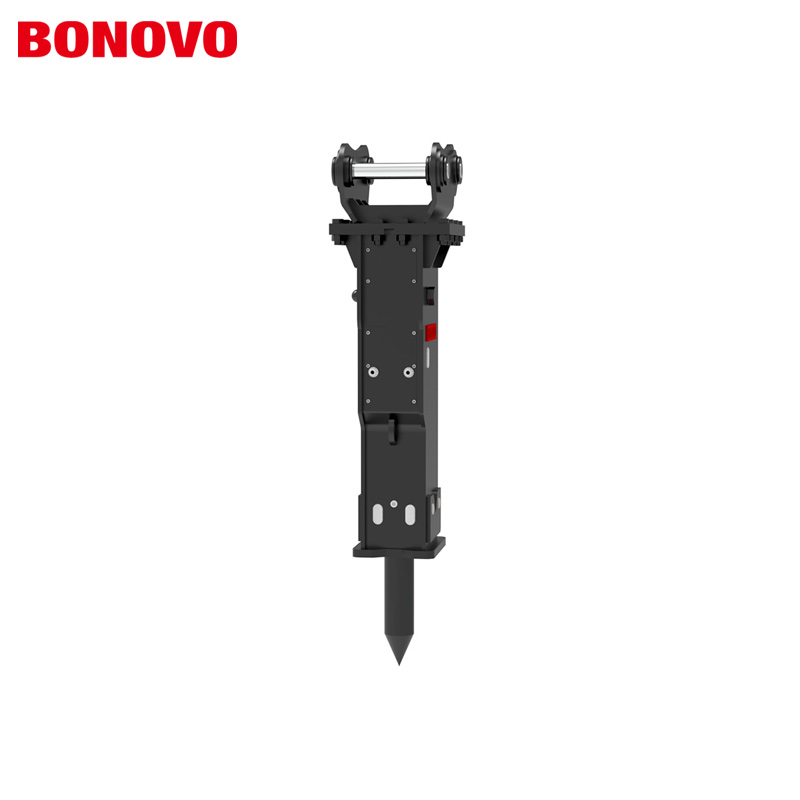

BONOVO Box Type Excavator Concrete Breaker |
||||
| Model | Unit | HB850 | HB1000 | HB1350 |
| For Excavator | ton | 7-14 | 10-15 | 15-25 |
| Operating Weight | kg | 550 | 820 | 1380 |
| Working Flow | L/min | 45-85 | 80-120 | 90-120 |
| Working Pressure | Bar | 127-147 | 150-170 | 150-170 |
| Impact Rate | Bpm | 400-800 | 400-700 | 400-650 |
| Impact Energy | Joule | 1200 | 2000 | 2950 |
| Tool Diameter | mm | 85 | 100 | 135 |
| Package Size | mm | 1620*500*600 | 1890*600*900 | 2200*680*900 |
Hydraulic jackhammers from BONOVO are renowned for their versatility and reliability across a wide range of industries. They are commonly used in:
- Gravel processing
- Mining operations
- Road construction
- Civil engineering projects
- Demolition tasks
- Metallurgical applications
- Tunnel engineering
The hydraulic jackhammers are available in various types to suit different needs, including:
- Triangular breakers
- Vertical breakers
- Silenced breakers
- Slip breakers (specifically designed for mini excavators)
BONOVO's Silenced excavator concrete breaker is uniquely designed with a fully enclosed hammer core, significantly reducing operational noise and offering superior protection from external impacts. This feature not only enhances the durability of the jackhammer but also makes it ideal for use in noise-sensitive environments.
To cater to different breaking requirements, BONOVO provides a variety of chisels for the hydraulic jackhammer, including:
- Moil point
- Blunt tool
- Flat chisel
- Conical point
The movement components of BONOVO's box type excavator concrete breaker, divided into the cylinder, middle cylinder, and front bar, are crafted from 20CrMo steel. This alloy structural steel is known for its high strength, excellent cold extrusion, and cold stamping performance, as well as good weldability and machinability. The inclusion of the Mo element ensures thermal stability, allowing the material to maintain its mechanical properties even under high heat conditions generated during operation.
The chisels are made from 42Cr material, which offers superior characteristics such as high compressive strength, excellent cutting performance, good flexibility, minimal deformation during heat treatment, and strong creep strength at continuous high temperatures. This results in a longer service life for the chisels.
BONOVO ensures that their hydraulic jackhammers are well-protected during transit with export-quality wooden box packaging. This packaging minimizes damage from sea moisture and includes common tools to facilitate routine maintenance, ensuring that the equipment arrives ready for immediate use.
When you choose BONOVO's Excavator Concrete Breaker, you're investing in:
- High Quality: Engineered with top-tier materials and advanced technology for exceptional performance and durability.
- Customization: Tailored solutions to meet your specific project needs.
- Rapid Delivery: Efficient production and shipping processes ensure quick turnaround times.
Discover the BONOVO advantage and enhance your project efficiency with our reliable and robust hydraulic jackhammers. Contact us today to learn more and place your order!
