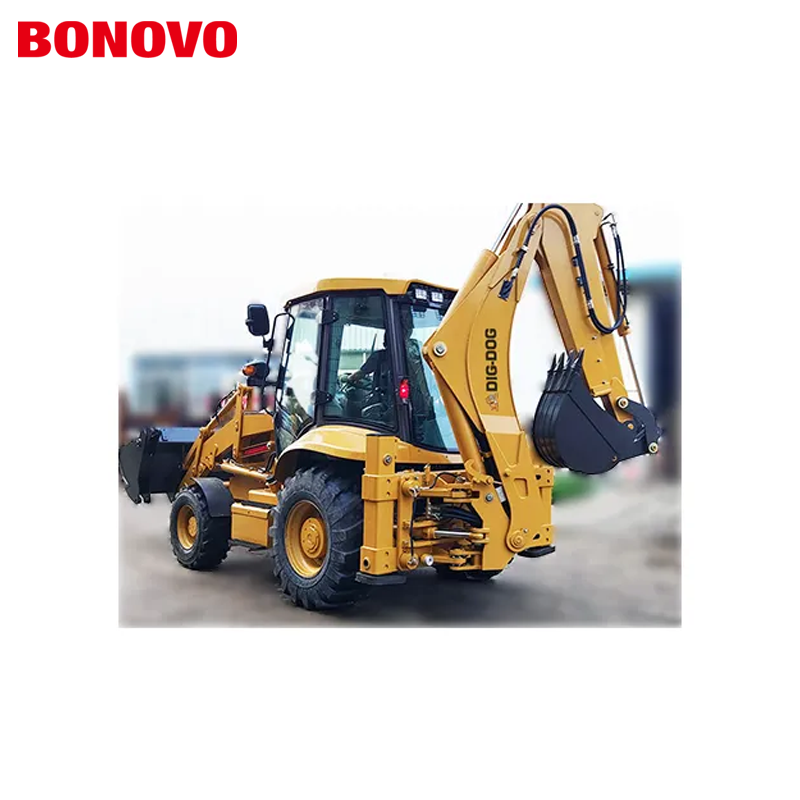

The DIG-DOG BL920 Backhoe Loader, also known as Loader Backhoes, Mini Backhoe, and Miniature Backhoe. This compact yet powerful machine is designed to excel in a variety of applications, offering unmatched versatility and performance on the job site.
The BL920 Backhoe Loader is perfect for a wide range of tasks, including construction projects, road maintenance, landscaping, utility work, and agricultural operations. Its compact size and maneuverability make it ideal for navigating tight spaces and urban environments, while its powerful engine and hydraulic system ensure efficient performance in any setting.
- Machine Weight: 9300 kg
- Engine Power: 134.87 hp /75 kw
- Loader Bucket Capacity: 1.2m³
- Backhoe Bucket Capacity: 0.3m³
- Max Digging Depth (Backhoe): 4970 mm
- Max Loading Height (Loader): 4983mm
DIG-DOG BL920 Backhoe Loader | ||
| Total length(bucket at ground | 6450±80mm | |
| Total width | 2650±20mm | |
| Bucket width | 2620mm | |
| Total height (cabin top) | 3120±10mm | |
| Total height (digging boom top | 3940 ±20mm | |
| Wheel base | 2335±10 mm | |
| Wheel tread | 2139 ±10mm | |
| Load main technical parameter) | ||
| Rated load | 2500KG | |
| Operating weight | 9300kg | |
| Rated bucket capacity | 1.2m³ | |
| （41°）Max. Dumping height (41° dumping angle) | 3050±50 mm | |
| Dumping distance | 870±20 mm | |
| Turning radius) | Tires outside | 5750±50mm |
| Digging main technical parameters) | ||
| Rated digging bucket capacity | 0.3m³ | |
| Max. Digging depth | 3820±20 mm | |
| Max. Digging radius | 5345±20mm | |
| Max. Loading height | 3740±20mm | |
| Max. Digging force | 5100kgf | |
| Max. Digging height | 5470 ±20mm | |
| Lifting force at Max. Digging radius | 1220kg | |
| Max. Digging Depth | 4970±20 mm | |
| Max. Loading Height | 4983±20mm | |
| Max. Digging Height | 6680±20mm | |
| Engine | ||
| Engine model | WC4A105Z-T20 | |
| Cooling type | Water cooling | |
| Rated power | 75 (kW) | |
| Displacement | 4.8(L) | |
| Rated speed | 2200(r/min) | |
| Max. Torque | 400(N.M) | |
| Manufacturer | YUCHAI | |
| Transmission | ||
| Hydraulic torque convertor | Model | 290 |
| Cooling way | Pressured oil circle | |
| Gearbox | Model | 15 |
| Type | Mechanically Operated Hydraulic Synchronized Shift | |
| Driving axles | Model | WZL100 |
| Gear shift | 4 F、 4 RForward 4 Backward 4 | |
| Speed（F/R）km/h | Forward1) 1 – 5 km/h | |
| Forward2) 2 – 10 km/h | ||
| Forward3) 3- 18 km/h | ||
| Forward4) 4- 32 km/h | ||
| Backward1) 1- 5 km/h | ||
| Backward2) 2- 10 km/h | ||
| Backward3) 3- 18 km/h | ||
| Backward4) 4- 32 km/h | ||
| Tyres model) | 16.9-28 | |
| Hydraulic system | ||
| Working pump displacement | 63ml/r | |
| Working pump pressure | 20Mpa | |
| Diverter model | BZZ5-250 | |
| Digging attachments(hydraulic hammer) | ||
| Rod diameter mm | 68-70 | |
| Working pressure Mpa | 11-14 | |
| Impact frequency | 500-900 | |
| Flow scope L/min | 25-45 | |
| kinetic energy KN | 49 | |
| Oil capacity | ||
| Hydraulic oil tank | 125 | |
| Fuel tank | 125 | |
The BL920 Backhoe Loader offers three different names, reflecting its versatility and adaptability to diverse tasks and environments.
Equipped with a powerful engine and advanced hydraulic system, this machine delivers efficient performance, maximizing productivity on the job site.
With its compact design and responsive steering, this mini backhoe is easy to maneuver in confined spaces, ensuring precise operation and minimal disruption.
Built with rugged construction and high-quality components, this miniature backhoe is designed to withstand the rigors of daily use, ensuring long-lasting durability and reliability.
The ergonomic cabin provides a comfortable and spacious working environment, equipped with intuitive controls and excellent visibility for enhanced safety and operator comfort.
The BL920 loader backhoe excels across multiple industries, proving its versatility in construction projects, road maintenance, landscaping endeavors, utility operations, and agricultural tasks. Its compact design facilitates seamless navigation through tight spaces and urban landscapes, while its robust engine and hydraulic system guarantee optimal performance across diverse environments.
Whether you're a contractor, landscaper, municipality, or farmer, the DIG-DOG BL920 Backhoe Loader stands as your trusted ally, ready to tackle a myriad of assignments with unparalleled ease and efficiency. Invest in the BL920 today to witness firsthand its transformative impact on your business or operation. Embrace excellence and elevate your performance with the BL920 Backhoe Loader.
The DIG-DOG BL920 loader backhoe offers a wide range of versatile attachments for both front-end loader and backhoe applications. Front-end loader attachments include options such as a quick-change device, multi-function buckets, forks, and specialized tools for snow removal and material handling. Backhoe attachments feature quick-change devices, hydraulic breakers, augers, telescopic arms, and tools for forestry and soil preparation. excavator buckets come in various widths to accommodate different digging and trenching needs. With these attachments, the BL920 Mini Backhoe becomes a versatile solution for contractors, landscapers, municipalities, and farmers, enhancing productivity and efficiency on diverse job sites.
